Proactive Medical Finger Pulse Oximeter

$34.99
SKU:
OXIM

Accurate reading of SpO2 values is among the most important factors for successful management of respiratory care. For patients with a breathing disorder, monitoring blood-oxygen levels can save their lives. Fingertip pulse oximeters offer a non-invasive, safe way to do this.

How to use Finger Pulse Oximeter?

Intended Use
  • The Pulse Oximeter Is a portable, convenient, non-invasive device, used for monitor artenal hemoglobin oxygen saturation (SP02) and pulse rate. The personal application are adult patients (weight: >30kgs) and pediatric patients(weight20.30kgs). Recommend index finger, middle finger and ring finger are suitable position for monitor. It's intended for spot-checking or attended-care monitoring in Home Health Care and Medical Facility.
Warning
  • This pulse Oximeter Is intended for use only by clinical professionals or under their guidance. It must only be used by persons who have received adequate training in its use. Anyone unauthorized or untrained must not perform any operation on it.
Cautions
  • This pulse oximeter is intended for use in hospital, clinical institution. heahhcare community.
  • The pulse oximeter is NOT designed for newborn and infant. For adults end childrenit recommended that the finger thickness should between 8-25.4mm.
Notes
  • The probe Is the hole In the middle of the equipment to which the finger insert.
  • The probe Is the Applied pan of the equipment.
Features
  • The pulse oximeter is smell in volumes. light in weight and easy to carry.
  • One button and easy to operate.
  • There are three modes: power off , sleep and measure.
  • Automatically turning into sleep mode within S seconds after there is no signal.
Notes
  • Press the operating button to activate oximatenmeasure mode from sleep mode.
  • Power off after removing the batteries.

Installing Batteries to Pulse Oximeter

  1. Put the two AAA batteries Into battery compartment In correct polarities.
  2. Push the battery cover horizontally along the arrow.

Installing Batteries

Warnings
  • Battery polarities should be correctly installed,otherwise.damage may be caused to the equiment.
  • Please remove the batteries if the oximeter will be stored for more than 30 days.
  • Please remove the batteries if you want to turn off the oximeter. Otherwise It Is always In power state.
  • Battery may leak or explode if used or disposed off improperly.

Proactive Finger Pulse Oximeter Application Method

  1. Remove the battery cover and insert the two AAA batteries following polarity markings indicated inside of the battery compartment,then reposition the cover.
  2. Hold the oximeter with the display facing toward you, slide your finger into the opening probe of the device until the fingertip touches the built-in stop guide. For best results,make sure the finger is centered with in the finger guide.
  3. Press the button to activate the oximeter from sleep mode, and then measurement interface will appear in 3 seconds.
  4. The measurement result will be read directly from the screen.
  5. The oximeter will turn into sleep mode automatically within 8 seconds after the finger left the probe.

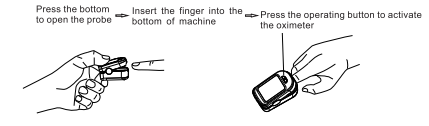

How to use finger pulse oxymeter
Attention for Operation
  • Ring finger, middle finger and index finger are recommended as suitable monitor position.
  • Excessive or rapid movement may affect measurement accuracy.
  • Improper sensor placement may affect the measurement accuracy. The oximeter can be reused after cleaning & disinfection.
  • The measurement comes to the best when the oximeter and the heart are at the same level.
  • The bar graph can be used as pulse intensity indicator. The displayed parameters might be unreliable with un-periodic change
  • The displayed parameters will show invalid indicator as *---* if signal quality is very low.
  • The displayed parameters will show invalid indicator as *---* if oximeter fault occur.
  • The maximum continuous test time does not exceed 5 minutes.

How to Clean and Disinfect Proactive Pulse Oximeter?

Cautions
  • Never Immerse or soak the oximeter.
  • It is recommend that the oximeter be cleaned and disinfected after use every time or determined by hospitals policy, to avoid long term damage to the oximeter.
  • Never use cleaning agents/disinfectants other than the recommended.
  • The sensor component is not cleaned and disinfected during testing.

Cleaning the Pulse oximeter

The recommended cleaning agents include: water
  • Shut down the pulse oximeter and remove the battery.
  • Clean the oximeter with cotton or soft cloth moistened with water.
  • After cleaning, wipe off the water with a soft cloth.
  • Allow the oximeter to air dry.

Disinfecting Pulse Oxymeter

The recommended disinfectants include:ethanol 70%.isopropanol 70%.
  • Shut down the pulse oximeter and remove the battery.
  • Clean the oximeter as instructed above.
  • Disinfect the oximeter with cotton or soft cloth moistened with disinfectants.
  • After disinfection, be sure to wipe off the disinfectant left on the oximeter with a soft cloth moistened with water.
  • Allow the oximeter to air dry.

Proacive Finger Pulse Oximeter User mannual

  • Proactive Oximeter Specifications
Particulars Specifications
Display Mode LCD
SpO2 Range 70% to 100%
Pulse Rate ( PR ) Range 30 to 240 bpm
Spo2 Resolution 1%
Pulse Rate ( PR ) Resolution 1 bpm
Spo2 +/- 2% at 70 to 100%
Unspecified for <70%
Pulse Rate ( PR )Accuracy +/- 2% or +/-2 bpm
From Capacity 30 - 250bpm

Proactive Finger Pulse Oximeter Warranty

 2 Year limited warranty.
